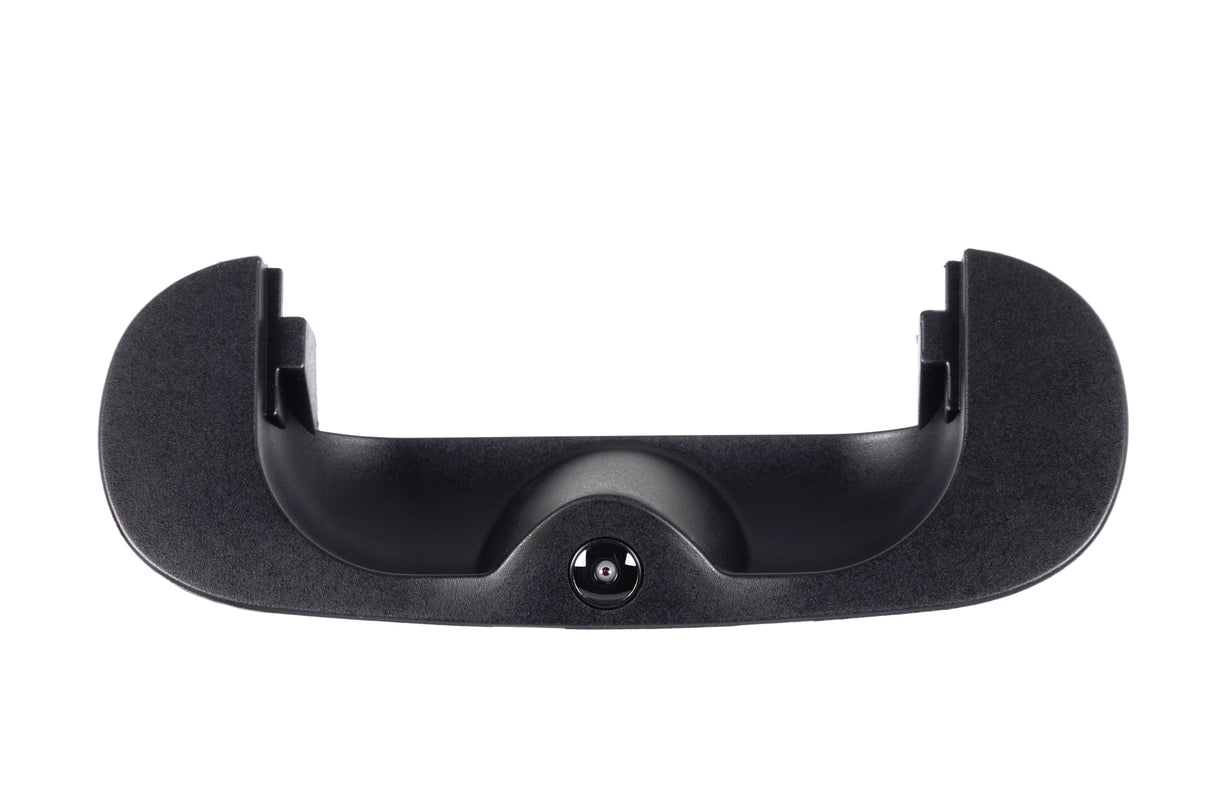

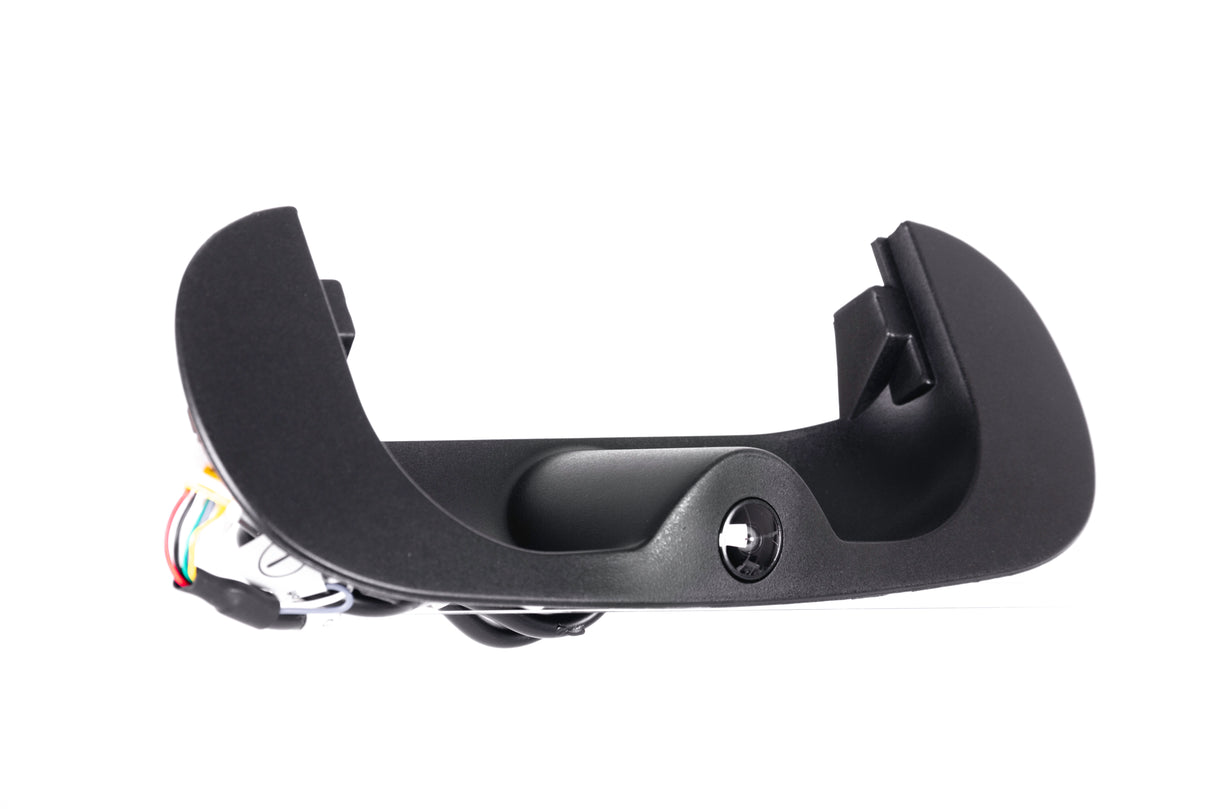

Dodge Ram (1994-2001) Black Replacement Tailgate Bezel with Backup Camera

Tailgate WITH Backup Reverse Camera ( Full Color Camera)

COLOR: Black

For use with:
Dodge Ram (1994-2001)

Description:

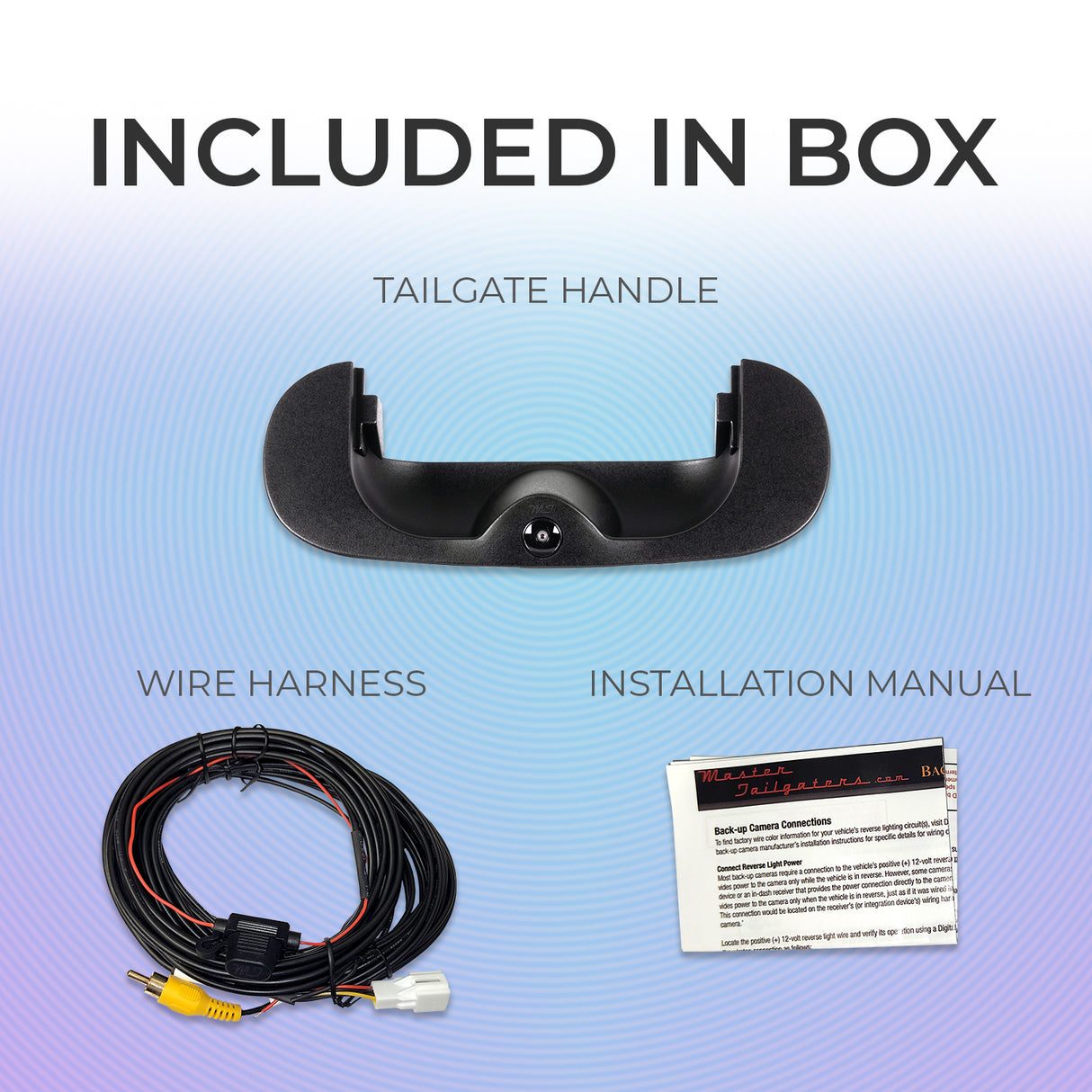

This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.

Note: This is for the Tailgate Bezel only. Please use your existing handle with this Tailgate Bezel.

Camera Specs:

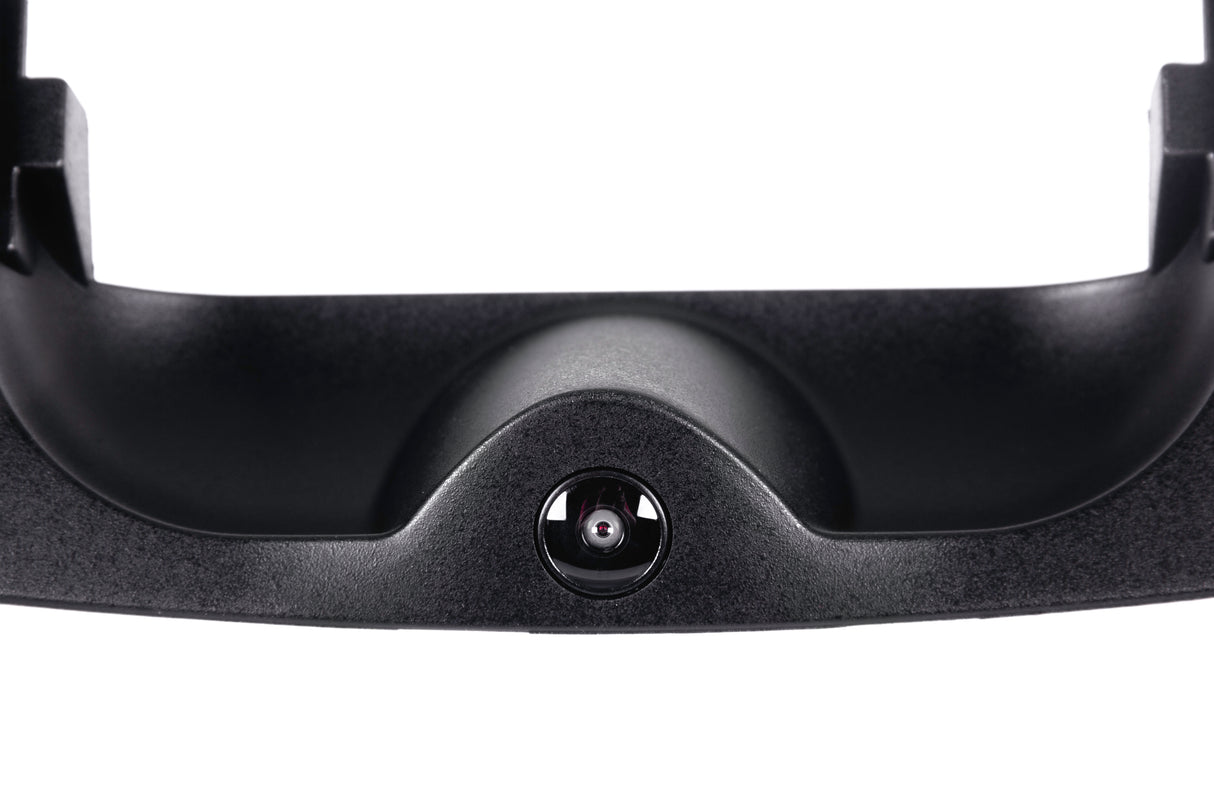

• Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
• Minimum Illumination : .1 Lux light sensitivity
• Signal System : NTSC/PAL
• Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
• Video Output : 1.1Vp-p 75 Ohm
• Electronic Shutter : 1/50 to 1/100,000 seconds
• Resolution : 600 TV line

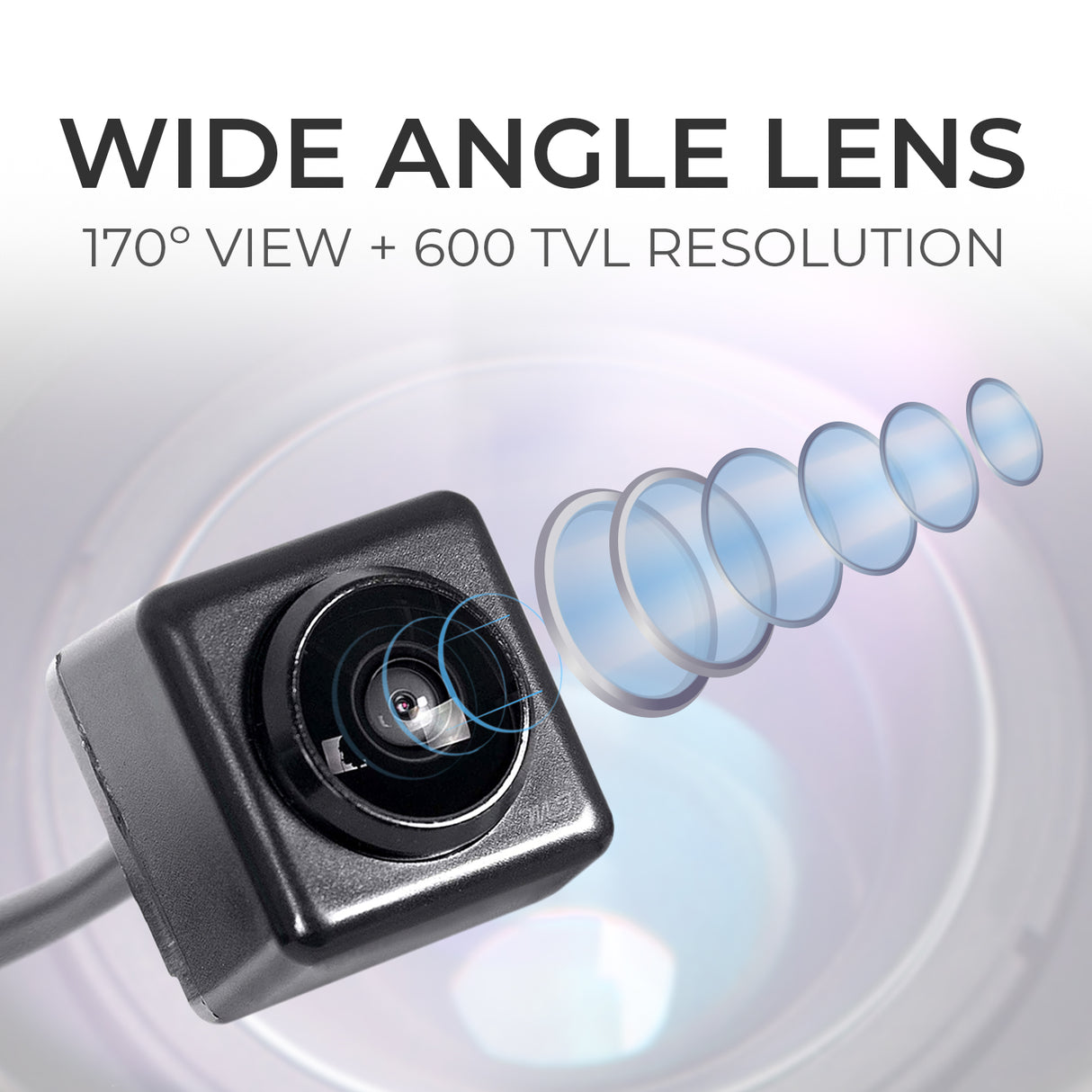

• Angle : 170 Degree

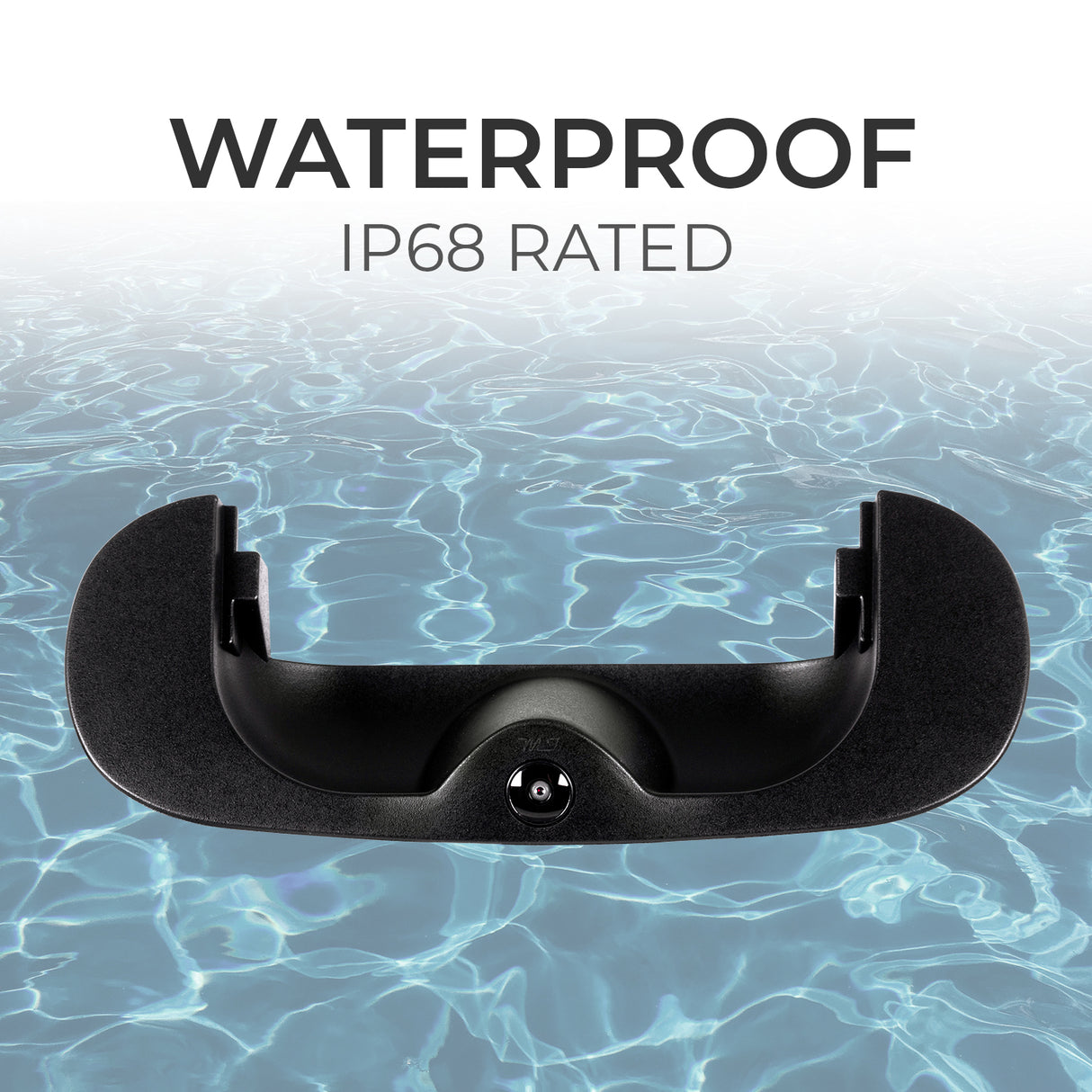

• Waterproof Rate : IP68
• Current Consumption : 120mA Max.
• Power : DC 12V

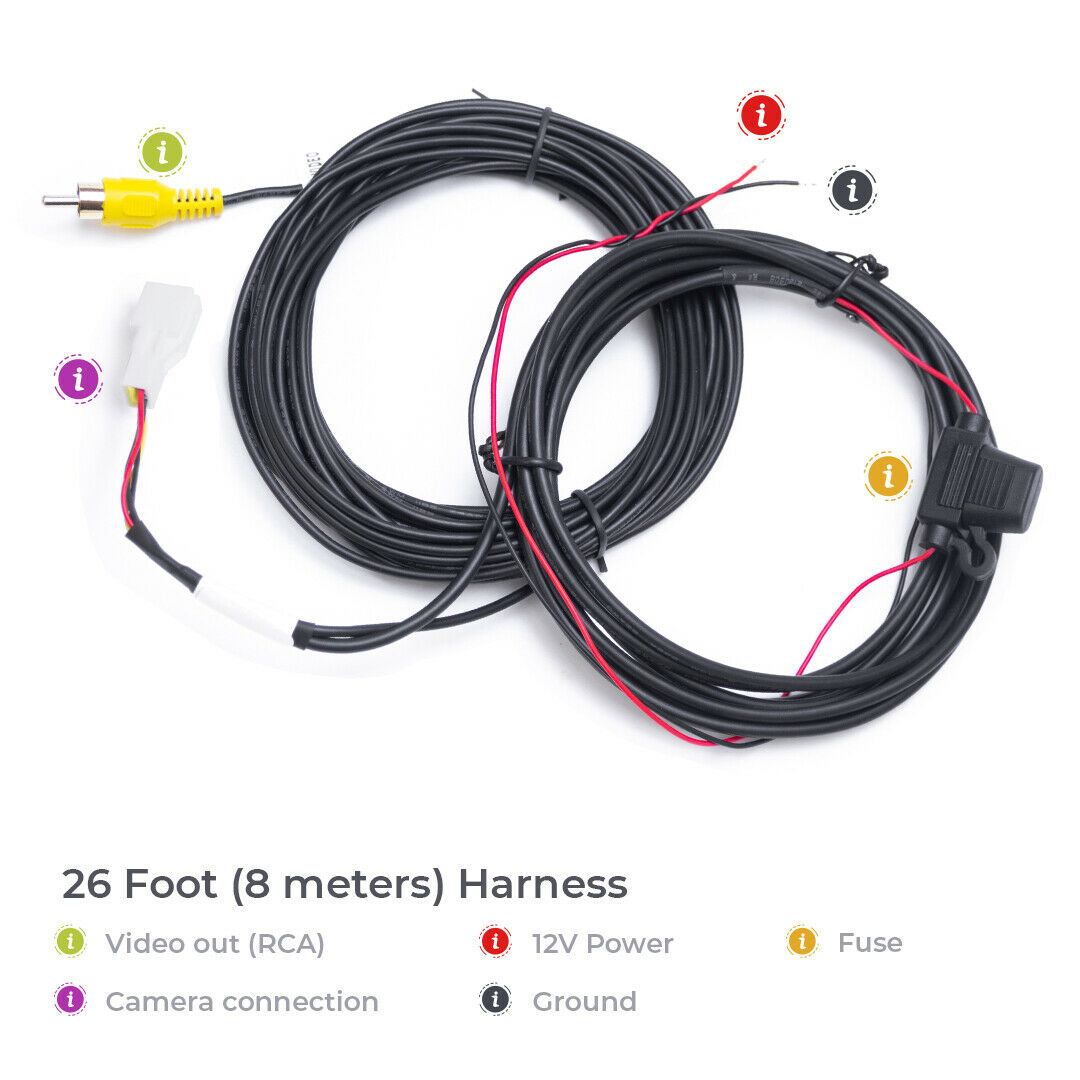

• Cable Length : Video Cable: 8M

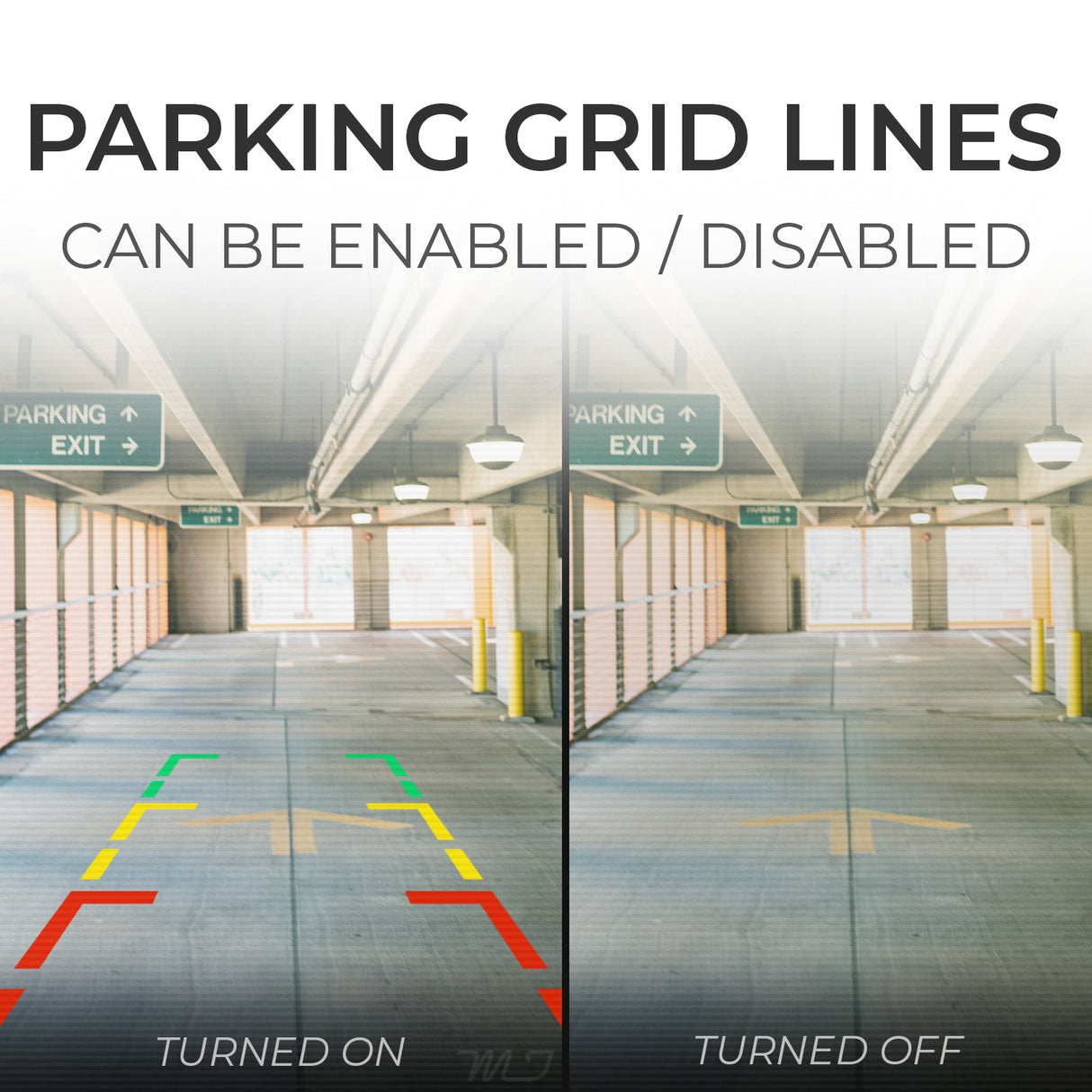

• Parking Grid Lines: Included with option to disable

Attention!!!:
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
This tailgate handle is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.

BACKED BY A 2 YEAR NO QUESTIONS ASKED WARRANTY!!!

[FITS]: Dodge Ram (1994-2001)
[RESOLUTION]: 600 TV Lines
[IMAGE SENSOR]: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic), Lux: .1 Lux light sensitivity
[ANGLE]: Wide View 170 Degrees - Clearly see your Trailer Hitch!
[Warranty]: This item is backed by a 2 year manufacturer warranty

Click here to view installation instructions for this product.
